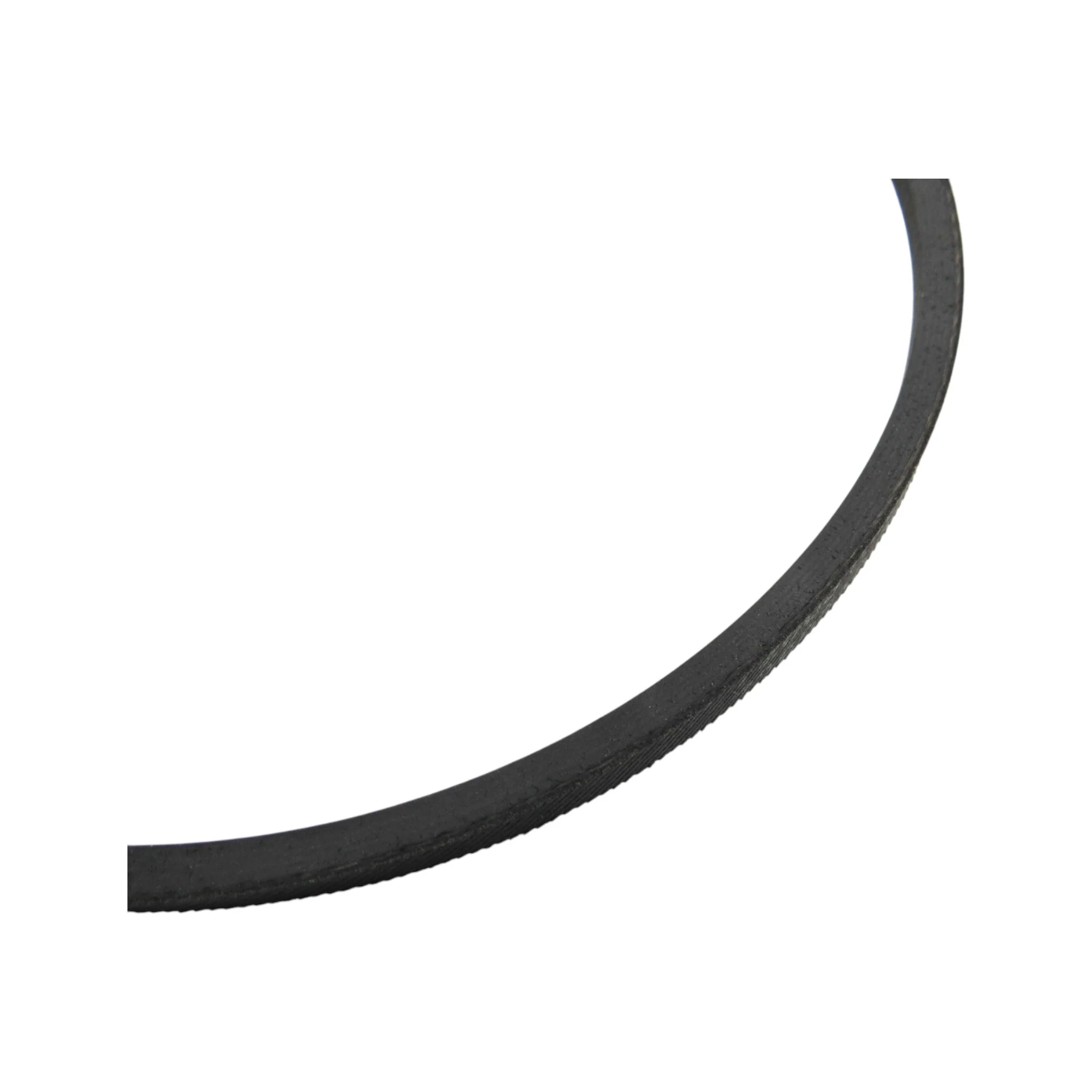

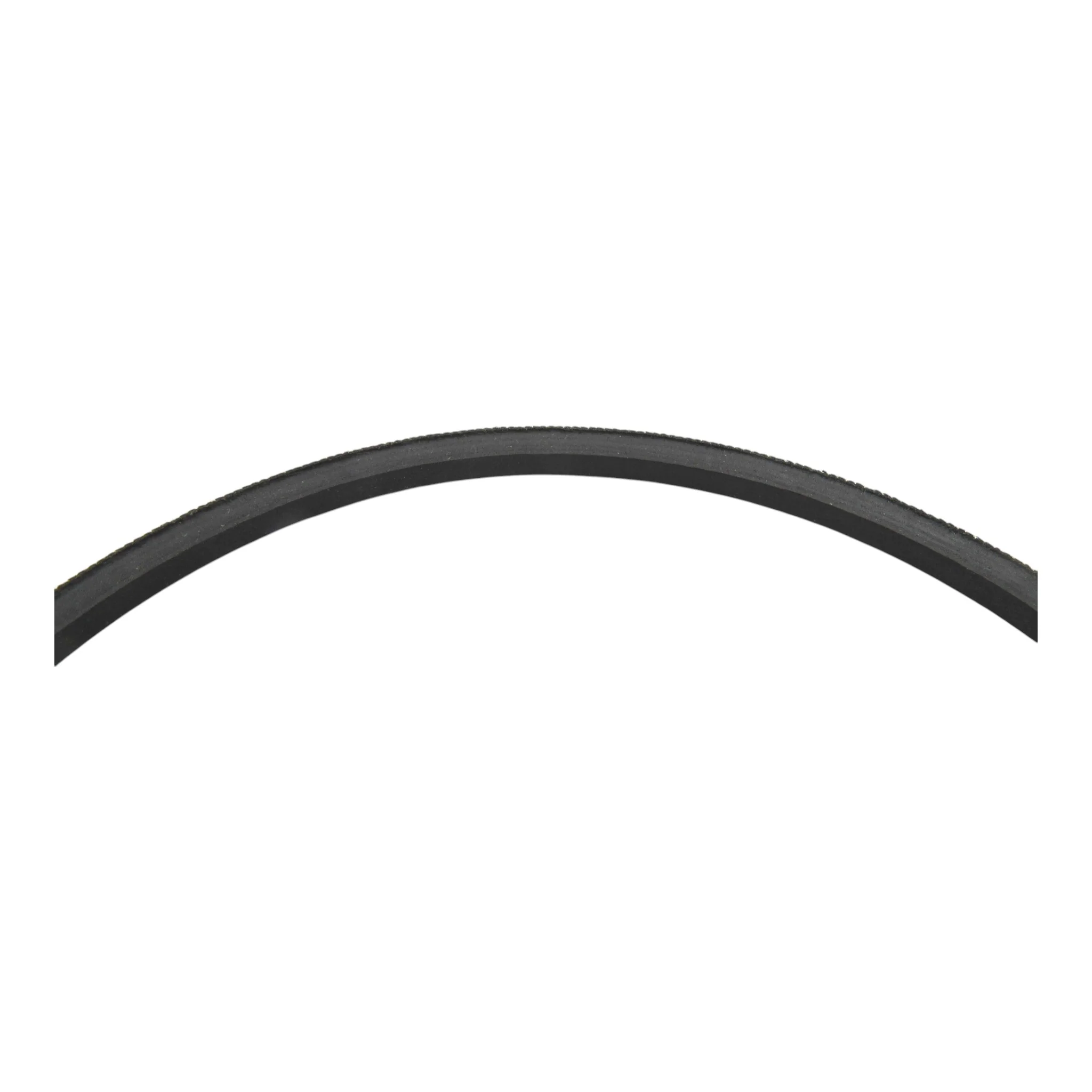

Replacement Motor V-Belt (Lower) for Bernina 830 Series Sewing Machines

Original style replacement lower motor V-belt designed specifically for Bernina 830, 831, and 832 sewing machines. This smooth V-belt transfers power from the motor to the machine's drive system, ensuring reliable operation of these classic Bernina models.

Product Specifications

• Part Number: 305.188.03
• Type: Motor V-belt (lower)
• Size: 5mm x 260mm
• Style: Original style replacement
• Compatibility: Bernina models 830, 831, 832

Compatible Bernina Models

830, 831, 832

Key Features

• Lower V-Belt: Specifically the lower motor belt in the drive system
• Smooth V-Design: Uses friction drive (not toothed like cog belts)
• 5mm x 260mm Size: Proper dimensions for correct fit and tension on 830 series models
• Original Style: Manufactured to original specifications
• Essential Drive Component: Transfers power from motor to machine mechanism
• Quality Replacement: Reliable performance for these vintage Bernina models

When to Replace Your Motor V-Belt

• Belt is cracked, glazed, or shows visible wear
• Belt has stretched and slips during operation
• Machine runs sluggishly or loses power
• Belt makes squealing noises during operation
• Machine won't run or runs intermittently
• Belt shows fraying or separation
• As preventive maintenance every few years of regular use

Understanding V-Belts vs. Cog Belts

V-belts use a smooth, wedge-shaped design that relies on friction between the belt and pulley grooves to transfer power. This is different from cog belts (used on newer Bernina models) which have teeth that mesh with toothed pulleys. V-belts are simpler but can slip if worn or improperly tensioned, while cog belts provide positive engagement.

Belt System for Models 830, 831, 832

These Bernina models use a two-belt V-belt system:

• Upper Belt (Part #305.201.13): 5mm x 422mm - available separately
• Lower Belt (Part #305.188.03): 5mm x 260mm - this product

Important: Models 830, 831, and 832 use a different lower belt size (260mm) than other 800 series models (236mm). Make sure you order the correct lower belt for your specific model.

Consider replacing both belts at the same time if performing major maintenance, especially if one belt shows significant wear.

Installation Tips

• Verify your model is 830, 831, or 832 - these models use a different lower belt size than other 800 series models
• Check belt tension after installation - should be snug but not overly tight
• Inspect pulleys for wear, cracks, or glazing when replacing belt
• Ensure belt seats properly in pulley grooves
• V-belts should not be twisted during installation
• Consider replacing both upper and lower belts together
• Keep spare belts on hand for future maintenance
• Allow new belt to seat in for first few hours of operation

About Bernina 830 Series Models

The Bernina 830, 831, and 832 are highly regarded vintage sewing machines known for their robust construction and excellent stitch quality. These classic models use V-belt drive systems for reliable power transfer. Regular replacement of wear items like motor belts is essential to keep these vintage machines running smoothly and reliably for generations.

Note

This is an original style quality replacement motor V-belt designed to meet original specifications. This is the lower motor belt specifically for models 830, 831, and 832 (5mm x 260mm). Other 800 series models use a different lower belt size (Part #305.163.03, 5mm x 236mm). Verify your model number before ordering. Some mechanical knowledge is helpful for belt replacement.
